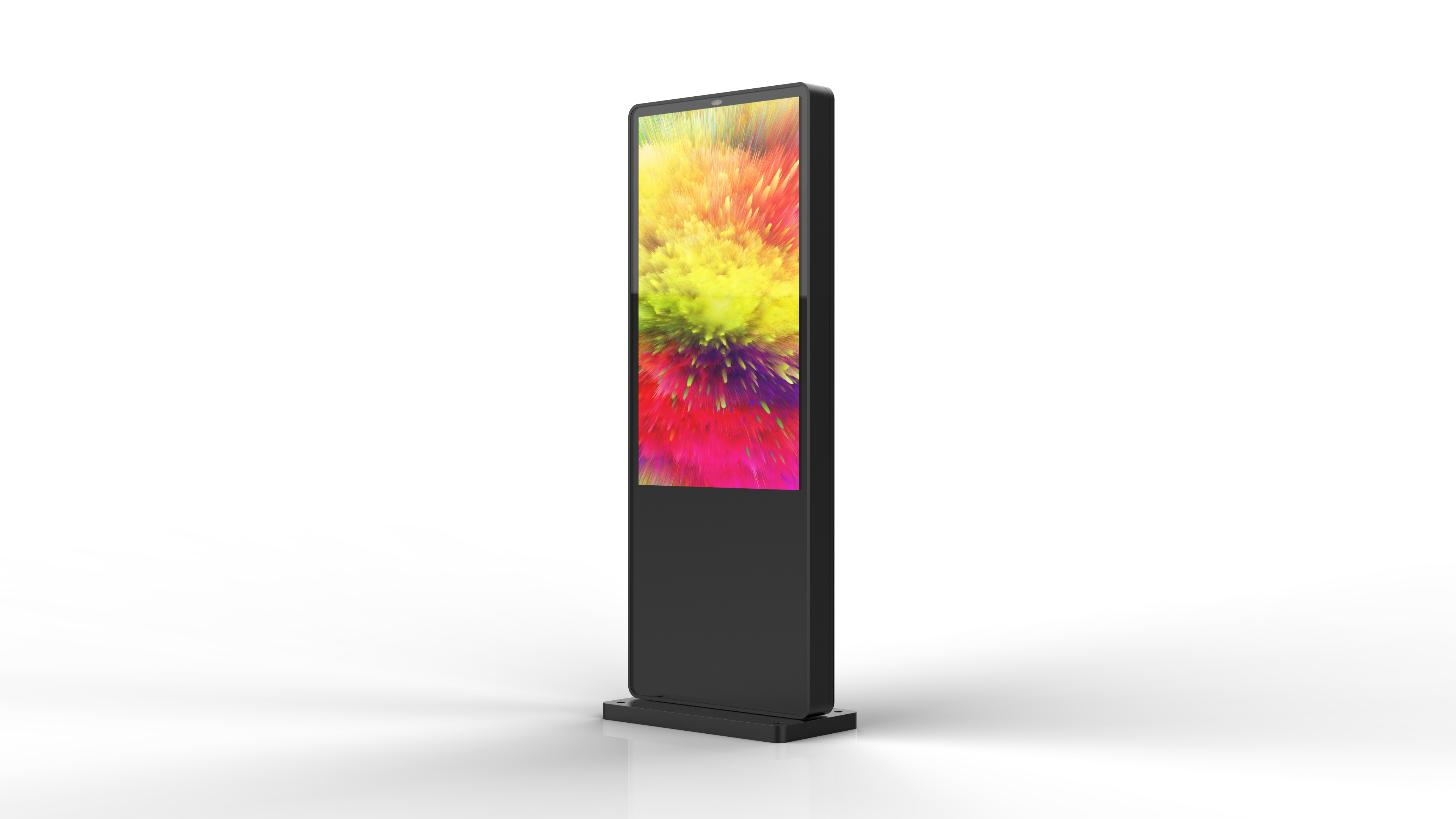

32"43"49"55"65"75"86" inch IP65 Vertical LCD Outdoor Digital Signage
32"43"49"55"65"75"86" inch IP65 Vertical LCD Outdoor Digital Signage
PDF Downloads

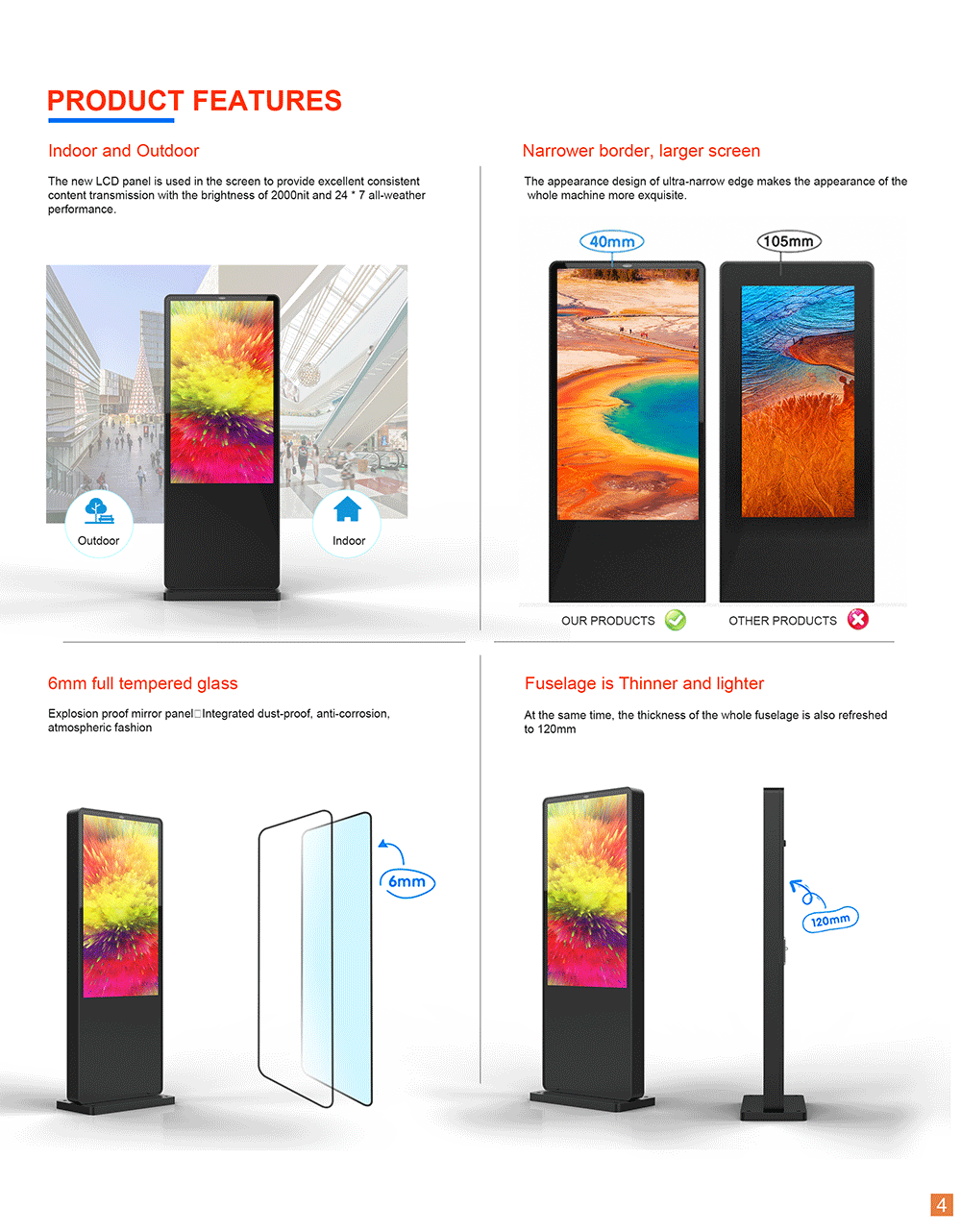

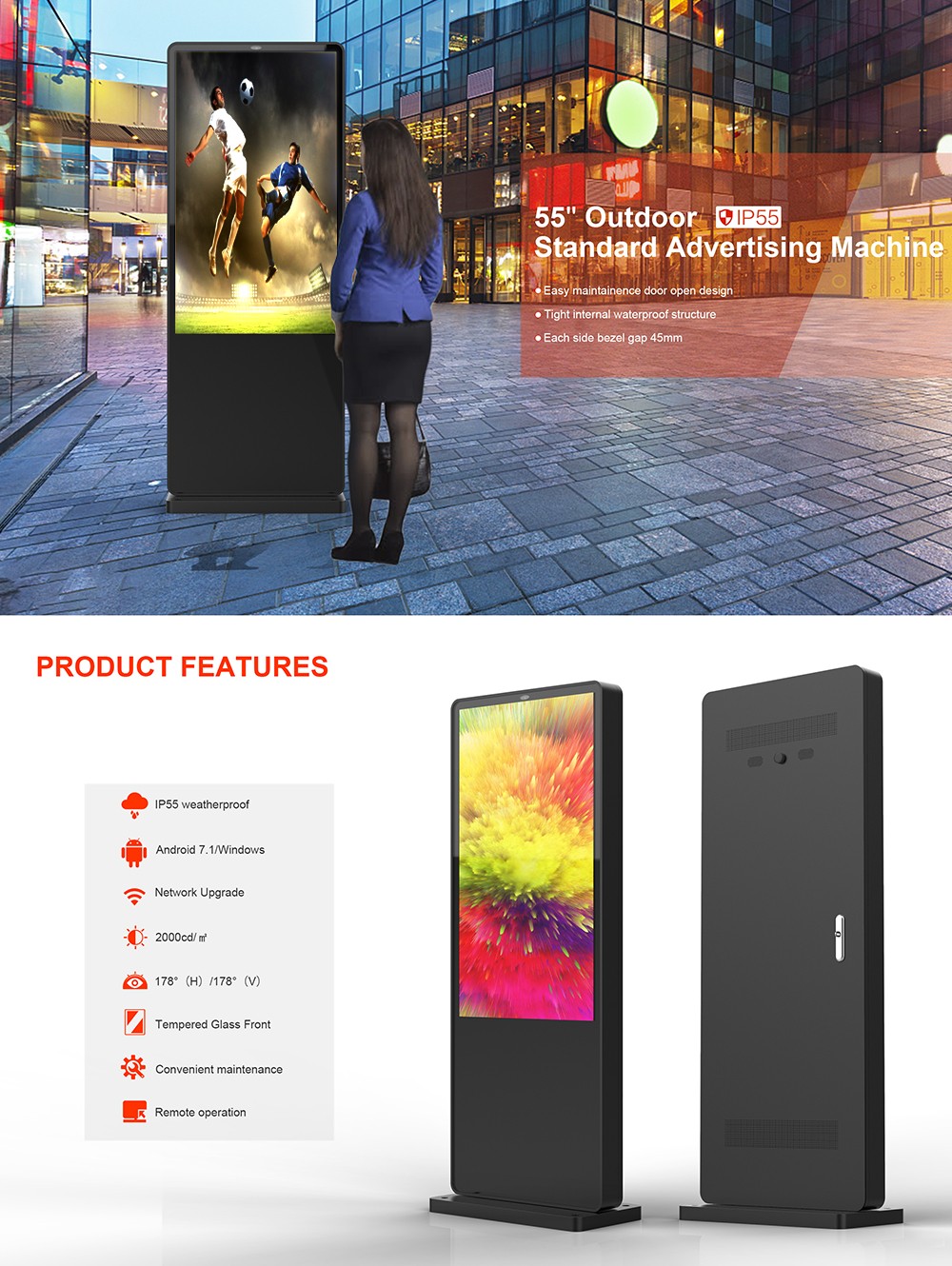

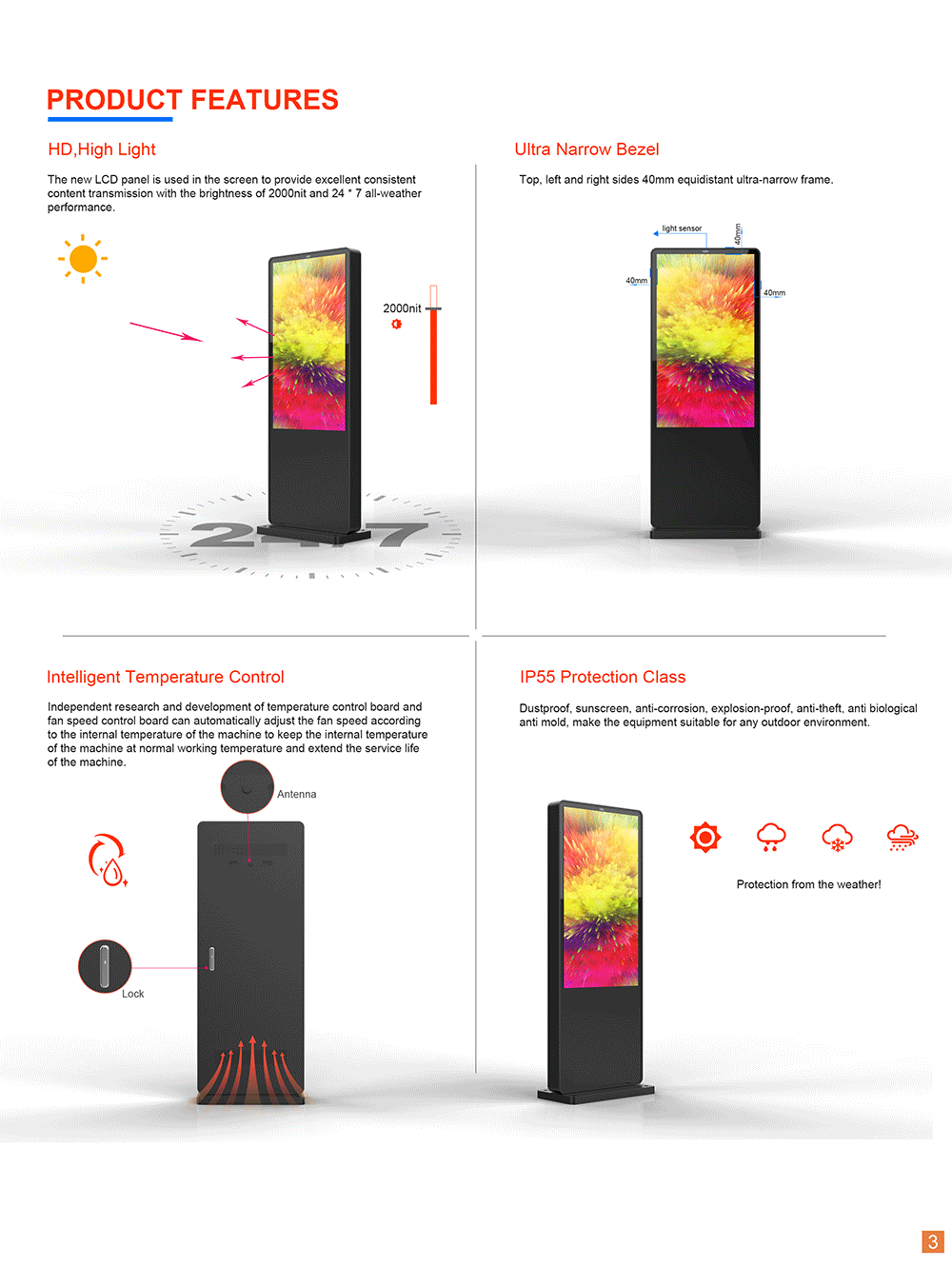

PRODUCT FEATURES

MOQ: 1 Set

Produce Period: 3-7 days

Supply Ability: 1000 Sets per Month

Nearest Port: Shenzhen,Guangzhou


Product Details



             Parameter

Structure

Installation method

Floor standing

Custom size

32"43"49"55"65"75"86"

Appearance color

Silver or optional

Material & Corrosion protection

1.5~2MM galvanized sheet, the surface is sprayed with outdoor powder

Glass

5mm tempered glass

Protection level

IP55/ IP65 Optional

LCD screen

Panel type

LCD Panel

Display ratio

16:9

Viewing angle

178

Response time

6ms

Resolution

1920RGB×1080UHD

Contrast ratio

1200:1

Brightness

2000 nits

Color

16.7 M

Service life

More than 50000 hours

TouchOptional configuration

No Touch Screen

Player

Operation systemoptional

Android 7.1

Main Board

Android RK3288

Memory

2G

Flash

8G support  32G

Main frequency

1.8GHz

Network support

EthernetWiFi

3G/4G module function optional, default none

Bluetooth

Support onboard Bluetooth function optional, default none

File system

Languages

Simplified Chinese, traditional Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, polish, Czech and other language

Basic interface Internal interface

USB2.0 Interface

×2

VGA output

×1

HDMI output (optional)

×1

MicroPhone

×1

RTC real time clock

1 clock battery holder

AV input

×4

Audio output

Power amplifier output, can directly drive 2*10W/8Ω speakers

SD card

1 standard SD card slot, maximum support 32GB

Working environment

Temperature control

Air coolingair conditioning optional, cost extra

Operating temperature

-30°C - +50°Cair cooling

Working humidity

5% to 90%

Storage temperature

-20°C to 60°C

Storage humidity

 10%85%

Power

Input voltage

AC220V

Normal working power consumption

400W

Standby power consumption

30W

Certificate

Certificate

 CE, FCC

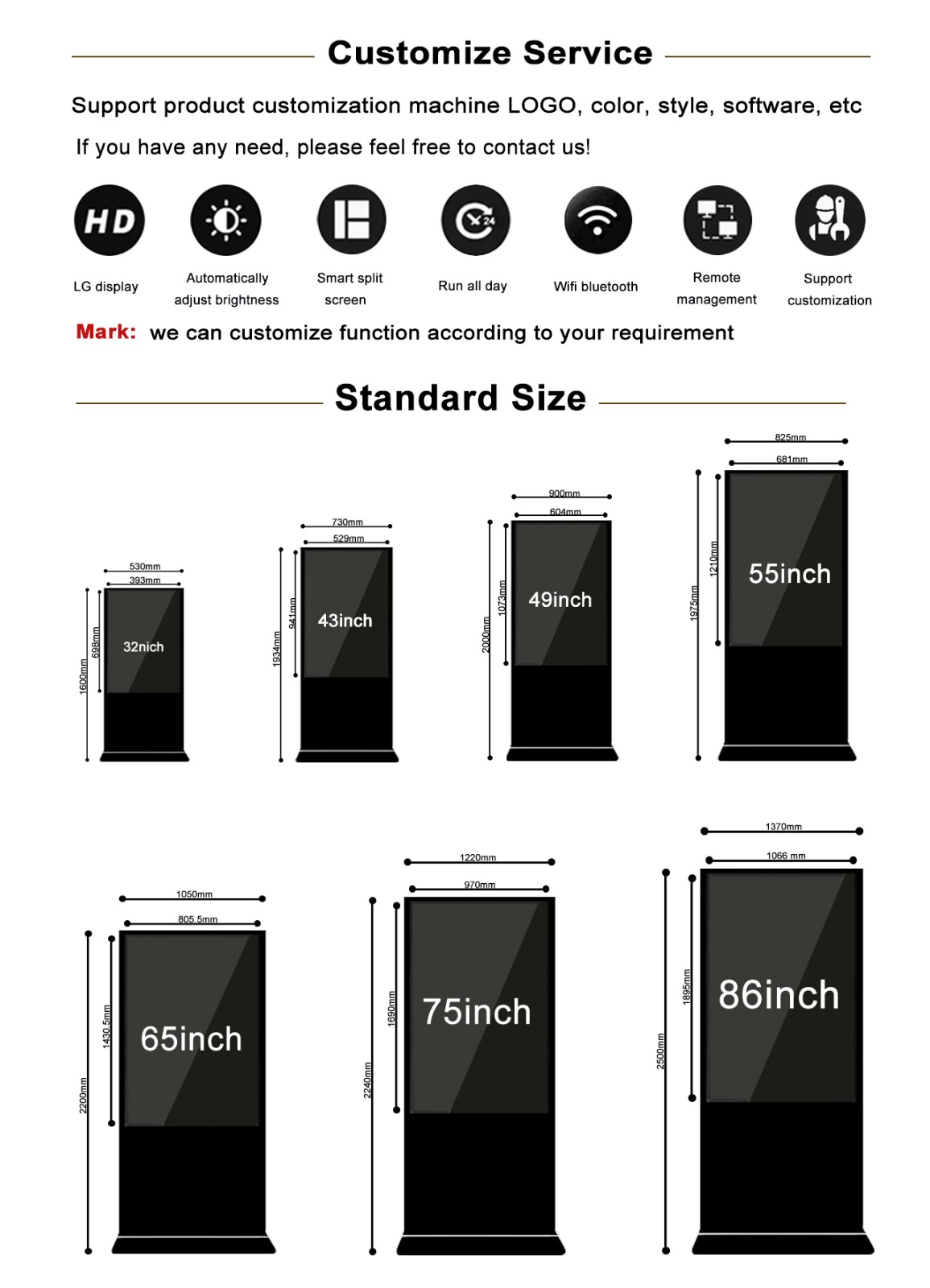

  Standard  Lcd display
Exterior Size
Display size
                         32"1600*530*200mm 698mm(H)*393mm(V)
                         43"1934*730*200mm  941mm(H)*529mm(V)
                         49"2000*900*200mm1073mm(H)*604mm(V)
                         55"1975*825*120mm  1210mm(H)*681mm(V)
                         65"2200*1050*220mm1430.5mm(H)*805.5mm(V)
                         75"2240*1220*250mm1690mm(H)*970mm(V)
                         86"2500*1370*230mm1895mm(H)*1066mm(V)
